Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing

Brand Name : HCT

Model Number : HCT-530LV

Certification : CE

Place of Origin : China

MOQ : 1

Price : 15000-26000

Payment Terms : T/T

Supply Ability : The production capacity is 50 units a month

Delivery Time : 5-15

Packaging Details : Vacuum packing plus wooden box packing

Maximum board size : 1200x360mm

Placement speed : 0.086s/chip

Placement accuracy : ±0.05mm

Mechanical precision : ±0.02mm

Component range : 0603(inch)~5050~7474(mm)

Max height : 10mm

Contact Now

Automatic SMT Machine for Smt Production Line HCT-530LV Pick and Place Machine for Electronic Products Machinery 8head LED PCB HXT machine chip mounter

Product introduction

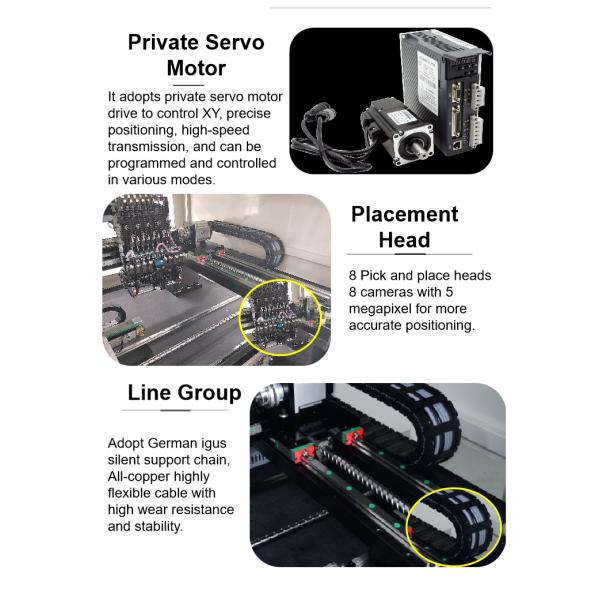

High-accuracy: Each of the eight pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.
High-speed: Maximum placement speed reaching 0.086s/chip.
Each mounting head has its own Z - direction closed-loop stepper motor, which is designed for vertical motion.
Places SMD components from 0603 to 7474, including resistors, capacitors, standard and irregularly shaped LEDs.
Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards and even irregularly shaped boards. Assembles LED PCBs up to 1.2 meters long in a single pass.
With a SMEMA-compatible inline conveyor for line automation.
Heavy marble platform support to ensure long-service life.
Excellent quality hardware support by using international famous brands ensure placement repeatability and precision.
Self-developed software simplifies production, easy operating and programming.

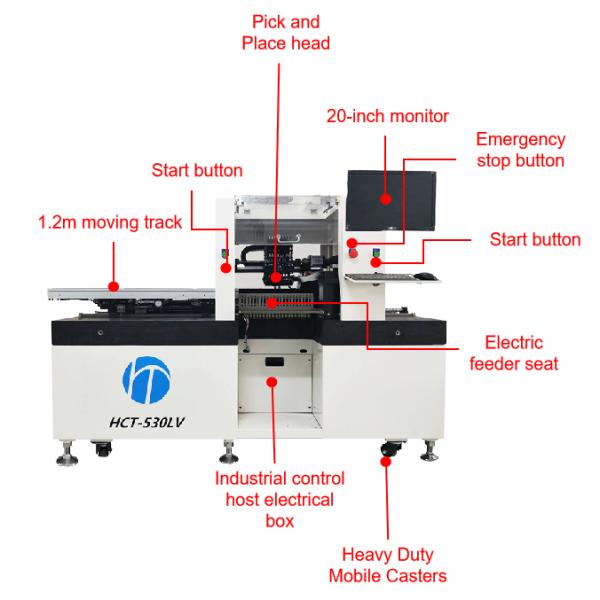

Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing

Product Specification

Technical Parameters
Model		HCT-530LV
Alignment		Flying Vision Alignment System
Number of Spindles		8 Spindles x 1 Gantry
Rated Placement Speed	Vision Alignment	LED 2835 45,000 CPH (Optimum)
Placement Accuracy		±0.05mm
		(Based on the standard chips)
Mechanical Precision		±0.02mm
Component Range	Vision Alignment	0603(inch)~5050~7474(mm),
		high-power LED, IC<10mm
	Max Height	H=10mm
		(can handle max. 16mm without vision alignment)
Board Dimension(mm)	Maximum	1,200(L) x 360(W)
Board Handling Method		Inline Conveyor
Tape Feeder	Feeder Type	Electric Feeder
	Feeder Capacity	20 (12mm)
	Optional	8mm, 12mm, 16mm, 24mm
Utility	Power	AC 220V/240V 50/60Hz, Single phase
		Max 2.8KW
	Air Supply	0.55-0.7MPa (5.6-7.1kgf/cm2)
		Built-in Vacuum Pump for Heads
Mass		Approx. 1560kg
External Dimension(mm)		2,000(L) x 1,250(D) x 1,400(H)

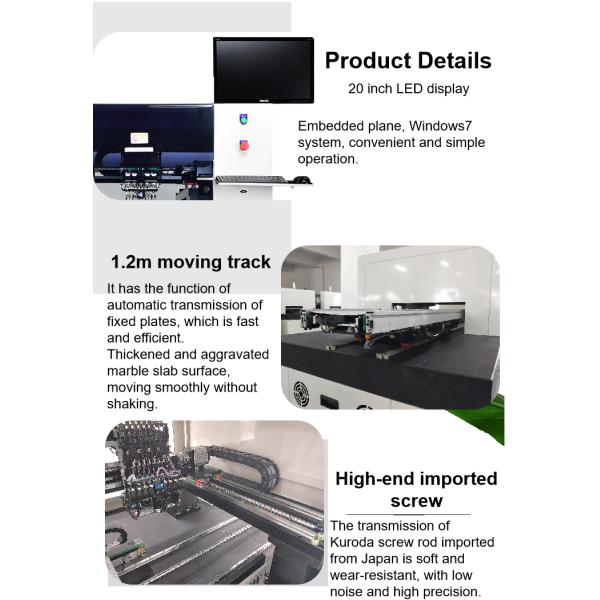

Product details

Application :

Widely used in LED lighting, display screen manufacturing and electronic manufacturing services (EMS) industries.
The manufacture of LED fluorescent tube, soft lamp band, LED Dob, LED display screen, especially the mounting of LED display module above P4, enough to handle all kinds of resistors, capacitors, IC, LED chips, and other components of the Mount, suitable for a variety of electronic products in bulk production.

Product Tags:

High Accuracy Smt Machine For Pcb Assembly

High Accuracy home pick and place machine

Convenient Smt Machine For Pcb Assembly
